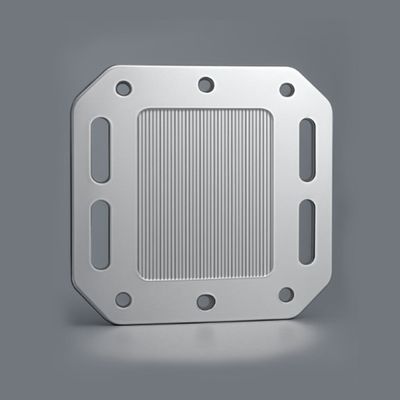

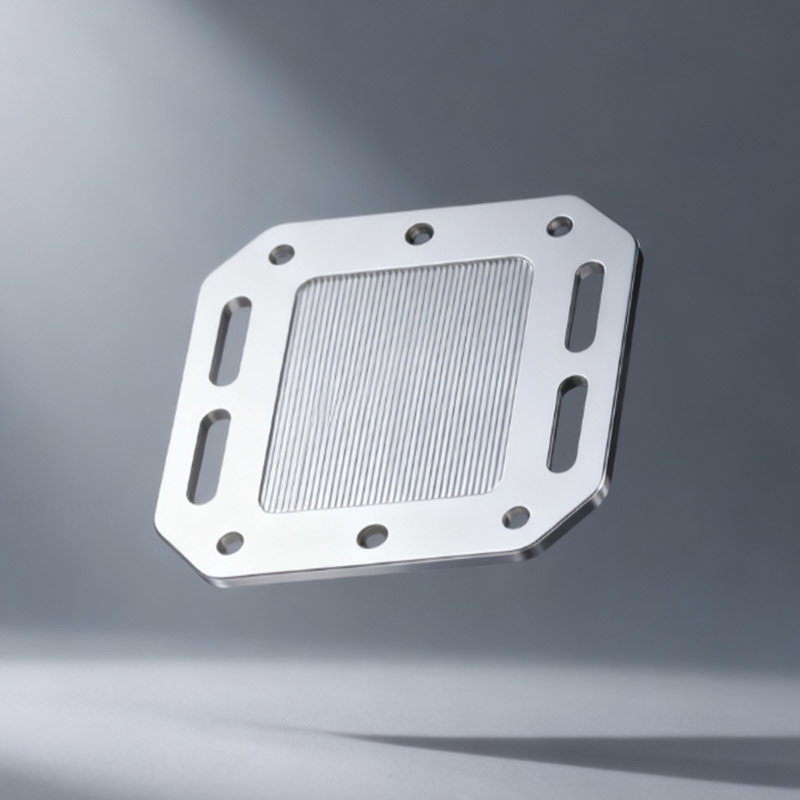

Custom Metal Etched Bipolar Plates for Hydrogen Fuel Cells and Battery Packs
Product Overview
Our bipolar plates are precision-etched metal components essential for fuel cells and other advanced energy applications. They ensure efficient gas distribution, electrical conductivity, and thermal management, supporting high-performance systems with reliability and durability.
Manufacturing Process
We utilize advanced chemical etching technology to produce bipolar plates. This process allows for precise, burr-free shaping without altering material properties, ensuring consistency and high quality in every plate.
Product Features
Precision Design: Etched flow fields with tolerances as tight as ±0.03mm ensure optimal reactant distribution and consistent performance.
Superior Conductivity: High electrical and thermal conductivity materials maximize energy efficiency and heat dissipation.
Lightweight & Compact: Thin, uniform plates (from 0.05mm) help reduce stack size and weight without sacrificing strength.
Corrosion Resistant: Compatible with stainless steel, titanium, and other alloys for long-term durability in harsh environments.
Complex Channel Geometry: Flexible etching process allows for intricate, custom flow field patterns (e.g., serpentine, parallel, pin-type) without tooling or stress.
Smooth, Burr-Free Surfaces: No mechanical deformation or micro-cracks, ensuring better sealing and lower contact resistance.
Product Specifications
| Parameter | Specifications |
|---|---|
| Materials | Stainless Steel, Titanium, Aluminum, Copper, Nickel-based alloys |
| Thickness Range | 0.05mm - 1.5mm |
| Standard Tolerance | ±0.03mm |
| Minimum Hole Size | 0.03mm |
| Minimum Line Width | 0.015mm |
| Flow Field Patterns | Serpentine, parallel, pin-type, interdigitated, custom designs |
| Plate Dimensions | Up to 600mm × 600mm (custom sizes available) |
| Surface Roughness | Ra ≤ 0.4μm (as standard) |
| Flatness | ≤ 0.1mm/100mm |
Automotive Fuel Cells
Passenger vehicle fuel cell stacks
Commercial vehicle power systems
Fuel cell bus power modules
Stationary Power Generation
Backup power systems
Distributed generation units
Telecom base station power supplies
Portable Power Systems
Military portable power devices
Emergency backup power units
Outdoor power supplies
Special Applications
UAV fuel cell power systems
Submarine power modules
Aerospace power equipment
Why Choose Xinhaisen?
Fast Turnaround & High Capacity: Ideal for urgent and large-volume orders.
Wide Material Expertise: Experience with various metals including stainless steel, titanium, and copper.
Precision & Quality: Advanced etching ensures high accuracy and repeatability.
Proven Reputation: Trusted by clients in communications, medical, automotive, and energy sectors.
